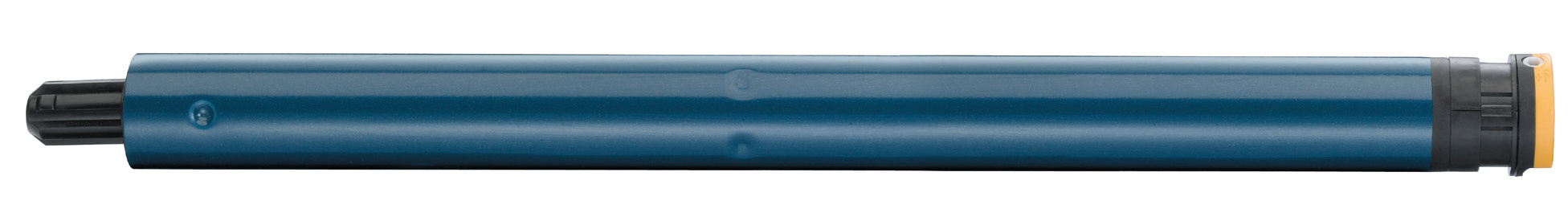

Somfy LS40 wired tubular motor
LS40
Wired · RS485 · Dry contact · RTS · io
The proofed diameter 40 mm wired motor for external screens and interior blinds.
Applications
roller blinds · roman blinds · venetian blinds · cellular blinds · projection screens · external vertical screens
• Suitable for tubes diameter 37 mm or more (internal diameter)
• Can be used for windows up to 5 m2 for external vertical screens
Main characteristics
Fit small diameter tubes for compact cases
Easy integration thanks to the thin round head
Progressive limit settings thanks to the progressive adjusting knob on the head
AC switch control via mechanical means
Certifications
Warranty 5 year
CHARACTERISTICS
| Characteristic | Value |
|---|---|
| Supply voltage | 100-240 V AC / 50/60 Hz |
| Degree of protection | IP 44 |
| Operating temperature | -20 to 70°C |
| Protection class | Class II Class I for 120 V and 100 V |
| Limit switch unit | Progressive |
| Conformity | www.somfy.com/ce |
Performance
| Nominal voltage | 230 V / 50 Hz | 120 V / 60 Hz | 100 V / 50-60 Hz | 220 V / 60 Hz | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Torque | 1,3 Nm | 3 Nm | 4 Nm | 9 Nm | 13 Nm | 4 Nm | 4 Nm | 9 Nm | 12 Nm | 3 Nm | 4 Nm | 7 Nm | 3 Nm | 4 Nm | 9 Nm |
| Speed | 55 rpm | 30 rpm | 14 rpm | 14 rpm | 8 rpm | 36 rpm | 16 rpm | 16 rpm | 8 rpm | 30 /36 rpm | 14 / 16 rpm | 14 / 16 rpm | 30 rpm | 16 rpm | 16 rpm |

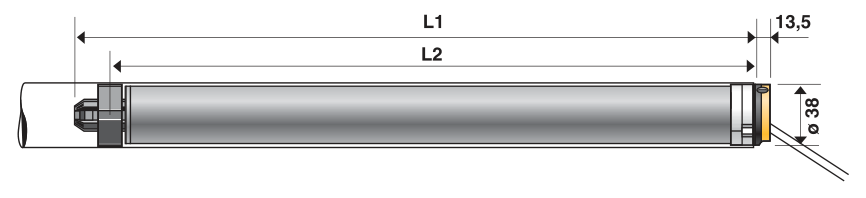

Dimensions
| L1 (in mm) | 442 | 442 | 442 | 442 | 453 | 442 | 442 | 442 | 442 | 442 | 442 | 442 | 442 | 442 | 442 |
| L2 (in mm) | 421 | 421 | 421 | 421 | 433 | 421 | 421 | 421 | 421 | 421 | 421 | 421 | 421 | 421 | 421 |
Type of cable
230 V / 50 Hz 220 V / 60 Hz 3 threads by wire
- Blue = Neutral
- Brown = Active 1
- Black = Active 2
120 V / 60 Hz 100 V / 50-60 Hz 4 threads by wire
- White = Neutral
- Brown = Active 1
- Black = Active 2
- Green = Earth
Changer le Brown en Red
