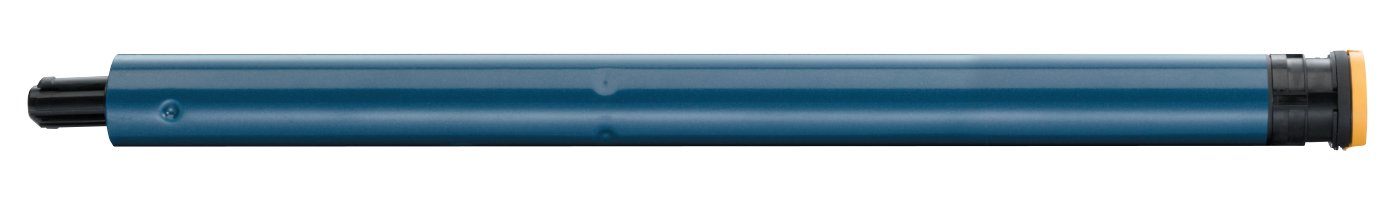

Somfy Altus 40 RTS
Les mer om Elektriske rullegardiner her.
The diameter 40 mm RTS motor for external screens and interior blinds.
Applications
- roller blinds
- roman blinds
- venetian blinds
- cellular blinds
- projection screens
-
external vertical screens
-
Suitable for tubes diameter 37 mm or more (internal diameter)
- Can be used for windows up to 9 m2 for external vertical screens
Main characteristics
- Fits small diameter tubes for compact cases
- Easy integration thanks to the thin round head
- RTS embedded with solar and wind protection functions compatibility
- Integrated antenna
- Remote limit settings
- Visual feedback of the product to confirm any step of setting and programming
- Same range of accessories as LS40
- For external screens and interior blinds
CHARACTERISTICS
| Characteristics | |
|---|---|
| Supply voltage | 120-240 V AC / 50/60 Hz |
| Degree of protection | IP 44 |
| Operating temperature | -20 to 70°C |
| Protection class | Class II Class I for 120 V |
| Limit switch unit | Electronic |
| Conformity | www.somfy.com/ce |
Performance
| Nominal voltage | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 120 V / 60 Hz | 120 V / 60 Hz | 220 V / 60 Hz | 220 V / 60 Hz | 220 V / 60 Hz |
|---|---|---|---|---|---|---|---|---|---|
| Torque | 3 Nm | 4 Nm | 9 Nm | 13 Nm | 4 Nm | 9 Nm | 3 Nm | 4 Nm | 9 Nm |
| Speed | 30 rpm | 14 rpm | 14 rpm | 8 rpm | 36 rpm | 16 rpm | 30 rpm | 16 rpm | 16 rpm |
| Radio frequencies available for RTS | 433,42 MHz | 433,42 MHz | 433,42 MHz | 433,42 MHz | 433,42 MHz | 433,42 MHz | 433,42 MHz | 433,42 MHz | 433,42 MHz |
Dimensions
| Nominal voltage | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 120 V / 60 Hz | 120 V / 60 Hz | 220 V / 60 Hz | 220 V / 60 Hz | 220 V / 60 Hz |
|---|---|---|---|---|---|---|---|---|---|
| L1 (in mm) | 497 | 457 | 497 | 497 | 497 | 497 | 497 | 457 | 497 |
| L2 (in mm) | 473 | 433 | 473 | 473 | 473 | 473 | 473 | 433 | 473 |
Type of cable
230 V / 50 Hz, 220 V / 60 Hz — 2 threads by wire: Blue = Neutral, Brown = Active
120 V / 60 Hz — 3 threads by wire: White = Neutral, Black = Active, Green = Earth
