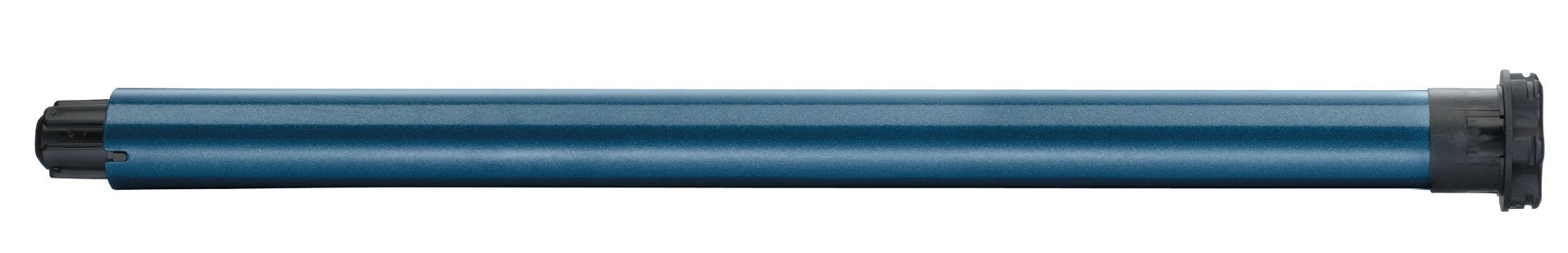

Sunea Screen io
The first universal io motor to motorize any vertical screen application.
Applications
external vertical screens
- Suitable for tubes diameter 50 mm or more
- For vertical screen with or without box and Zip applications
- Can be used for windows up to 15 m2
Main characteristics
- High speed motor
- Electronic stop detection
- Possibility to enable / disable back release after cassette closure
- Possibility to set the motor on both cassette mode (half automatic setting) or standard mode (manual setting)
- Available with star head (6 possibilities to orientate the head of the motor) or round head (for reduced dimensions)
- Compatible with all io sensors and controls
CHARACTERISTICS
| Supply voltage | 230 V AC / 50 Hz |
| Degree of protection | IP 44 |
| Operating temperature | 20% -20 to 70°C 80% -10 to 40°C |
| Protection class | Class I |
| Limit switch unit | Electronic |
| Conformity | www.somfy.com/ce |
Performance
| Nominal voltage | 230 V / 50 Hz | ||
|---|---|---|---|
| Torque | 6 Nm | 10 Nm | 15 Nm |
| Speed | 32 rpm | 32 rpm | 32 rpm |

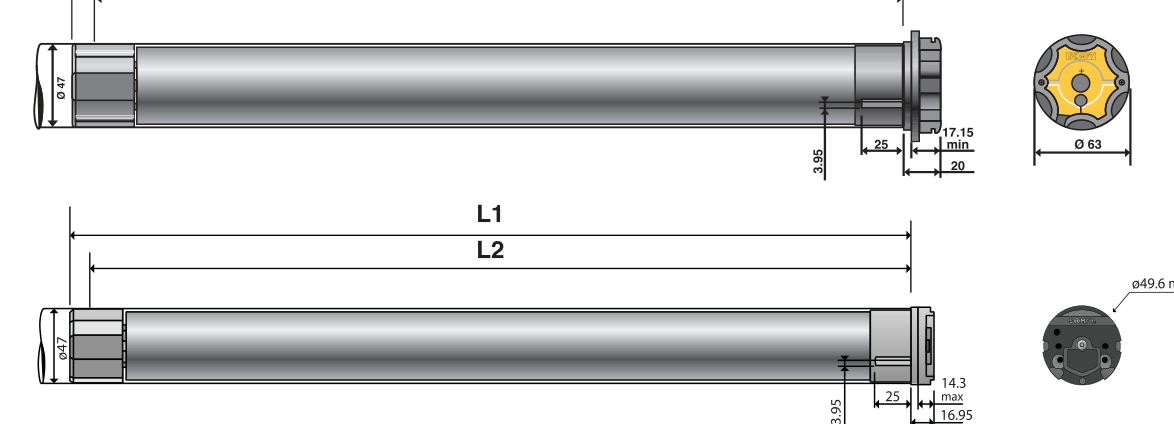

Dimensions
| L1 (in mm) | 655 | 655 | 675 |
| L2 (in mm) | 640 | 640 | 660 |
Type of cable
3 threads by wire
- Blue = Neutral
- Brown = Active
- Yellow /Green = Earth
