LT 50
Main characteristics & features
230V / 50Hz tubular motor.
The LT50 is suitable for a wide range of roller blind application types. Available in torques from 6Nm to 15Nm, coupled with its flexible 48mm design, it is adapted for Ø50mm tubes and above. Available in the traditional star head style. Rapid set push button limits and the adaptability of 230V control make the LT50 a suitable all round performer.
- Rapid set limits.
- 46 turn limit capacity.
- Suitable for tubes: Ø50 to Ø70.
- 230V switch control via electronic or mechanical means*.
- Requires the use of a crown and wheel for tube adaptation.
- Horizontal mount only.
- Intermittent Usage.
50mm
| JET 10/17 | Torque (Nm) | 10 | Speed (RPM) | 17 | Ref. | 1037062 |
|---|---|---|---|---|---|---|
* Parallel wiring of motors is prohibited without the use of an isolation controller, eg. 4AC Motor Controller, 4 Motor Group Controller, etc. Direct switching of a 230V motor must always be done via a mechanical interlock.
Technical characteristics
- Blue = Neutral
- Brown = Active 1
- Black = Active 2
- Green/Yellow = Earth

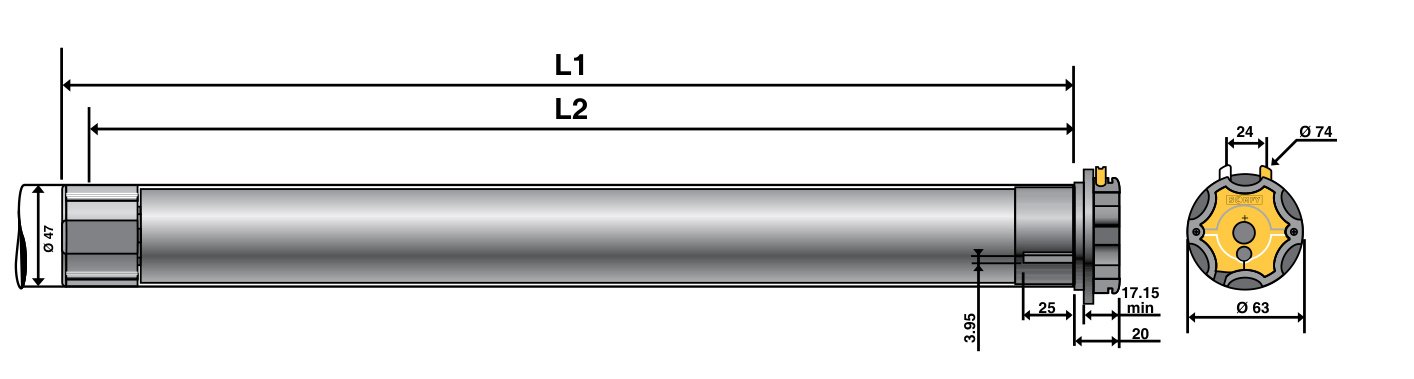

General overall size
Technical characteristics
| JET 10/17 | |
|---|---|
| L1 (mm)* | 525 |
| L2 riveting distance (mm)* | 510 |
| Torque (Nm) | 10 |
| Speed (rpm) | 17 |
| Turn Capacity | 46 |
| Rated Voltage (V) | 230 |
| Rated Power consumption (W) | 120 |
| Rated Current (A) | 0.5 |
| Running time before thermal cut off (min) | 4 |
| Thermal cut off temp (°C) | 140 |
| Average running noise (dbA) | 47 |
| Minimum tube diameter | 50 x 1.5 |
| Motor weight (kg) | 1.85 |
| Cable length (M) | 2.5 |
| Number of cores in cable | 4 |
| Cross section of cable (mm²) | 0.75 |
| Index Protection | IP44 |
Normal functioning temperature: -10° C to +40° C
*For wheels on tubes ø50 x 1.5 add 8mm to L1 (mm) and L2.
NOTE
Information about the noise is according to Somfy measures and is for information only. Taken as the worst value in load, for the up direction during the first 10 seconds of travel.
