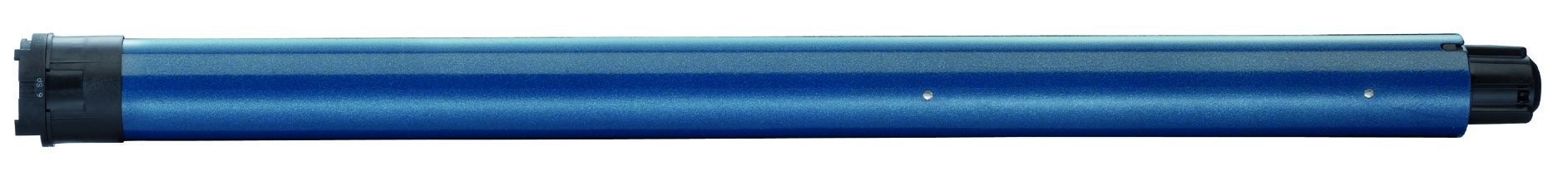

Somfy Altus 50 RTS

The diameter 50 mm RTS motor for external screens and interior blinds.

Applications

RTS embedded with solar and wind protection functions compatibility
Integrated antenna
High speed
Remote limit settings
Visual feedback of the product to confirm any step of setting and programming
Available with star head (6 possibilities to orientate the head of the motor) or round head (for reduced dimensions)

Nominal voltage	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	120 V / 60 Hz	120 V / 60 Hz	120 V / 60 Hz	100 V / 50-60 Hz	100 V / 50-60 Hz	220 V / 60 Hz	220 V / 60 Hz	220 V / 60 Hz
Torque	6 Nm	6 Nm	10 Nm	15 Nm	6 Nm	10 Nm	15 Nm	5 Nm	15 Nm	6 Nm	8 Nm	14 Nm
Speed	32 rpm	54 rpm	32 rpm	32 rpm	38 rpm	38 rpm	14 rpm	32 / 38 rpm	12 / 14 rpm	20 rpm	38 rpm	20 rpm
End-limit unit versions available	RTS RTS RH	RTS	RTS	RTS RH	RTS RTS RH	RTS RTS RH	RTS	RTS	RTS	RTS	RTS	RTS
Radio frequencies available for RTS (MHz)	433,42 MHz	433,42 MHz	433,42 MHz	433,42 MHz	433,42 MHz	433,42 MHz	433,42 MHz	426,0625 MHz	426,0625 MHz	433,42 MHz 447,7 MHz	433,42 MHz	433,42 MHz

Nominal voltage	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz	120 V / 60 Hz	120 V / 60 Hz	120 V / 60 Hz	100 V / 50-60 Hz	100 V / 50-60 Hz	220 V / 60 Hz	220 V / 60 Hz	220 V / 60 Hz

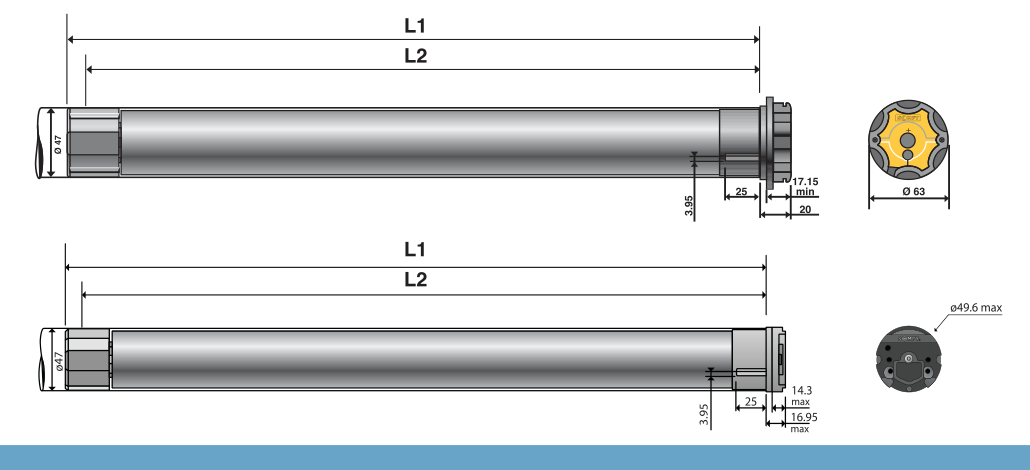

L1 (mm)	655	655	655	675	605	655	605	605	605	605	655	655
L2 (mm)	640	640	640	660	590	640	640	590	490	590	640	640

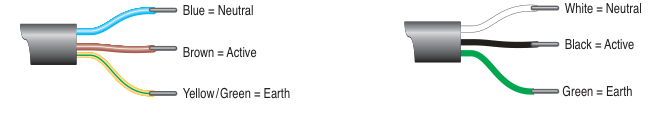

230 V / 50 Hz, 220 V / 60 Hz — 3 threads by wire: Blue = Neutral, Brown = Active, Yellow /Green = Earth

120 V / 60 Hz, 120 V / 50-60 Hz — 3 threads by wire: White = Neutral, Black = Active, Green = Earth
